●The black 7" projector LED headlight for Harley Davidson with full halo ring is our newest and best selling 7 inch LED Headlight with high beam and low beam. And it's an easy plug and play headlight assembly. Clear white pattern with a good light beam spread and coverage. Color changing halo is a nice touch to accent the rest of the lights on the motorcycles.

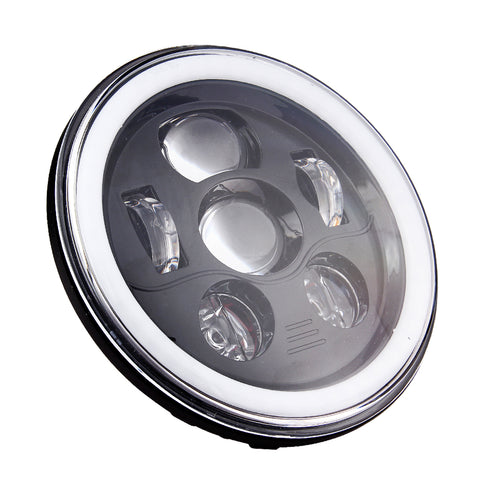

●Specification of the 7" round LED headlight with RGB halo ring: LED output power, 40W High Beam, 20W Low Beam. Color temperature 6500K. Shockproof & newly upgrade with Waterproof IP 68. Material: PMMA Lens and Black durable aluminum housing. Super bright light pattern over standard incandescent headlamps. Sure it will light up the road in front of you.
●Input voltage: 9-32V DC
Output voltage: 12V DC

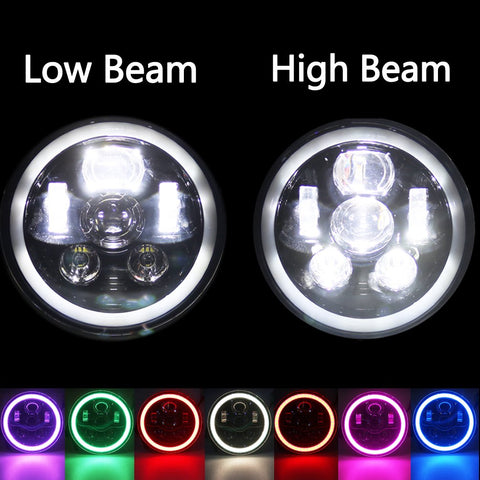

High beam: 36W 4500 lumens
Low beam: 27W 3300 lumens
Lamp bead model: 1860, 15W/pc 4pcs.
Chip model: CREE 55ɳ*3
Lamp housing material: ADC12 die-cast aluminum, sand grain black
Mask material: PC, 97% light transmittance
Lens material: transparent PMMA, 97% light transmittance
Input/output wire: PVC waterproof wire
Aperture lamp beads: 5050 RGBW four-color lamp beads 0.2W*4/pc 36pcs
Aperture power: 3W
Controller voltage: 9-32V DC, constant current drive.
●There are choices to splice the single red wire for the halo as per your needs. You can connect it to the low beam hot wire if you want the halo on and the low beam on for normal driving, or to any hot wire on the bike to turn on or off without having the headlight on.

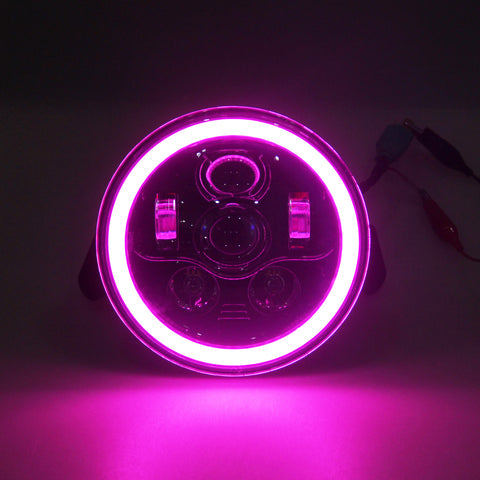

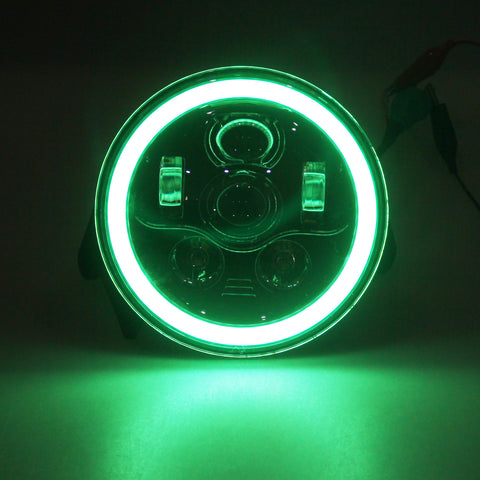

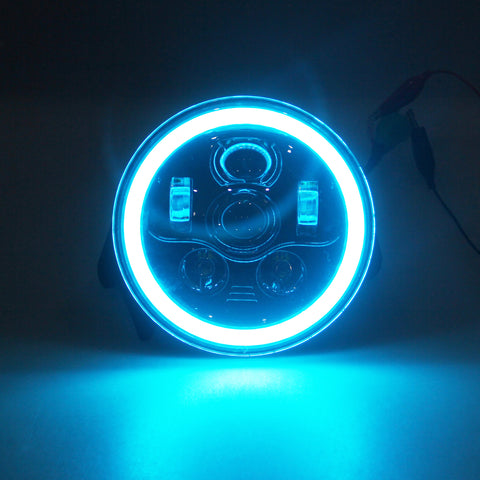

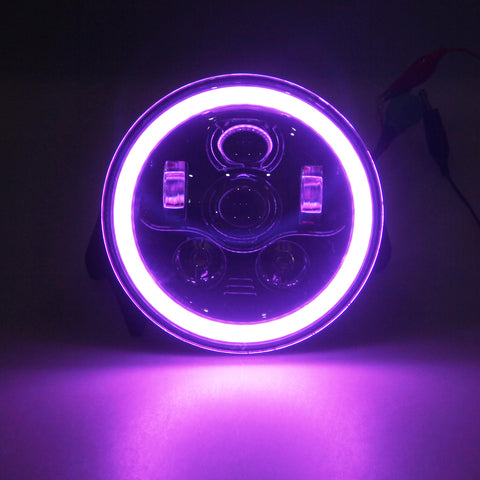

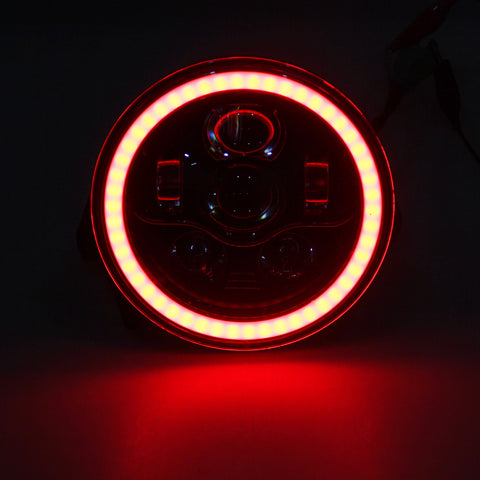

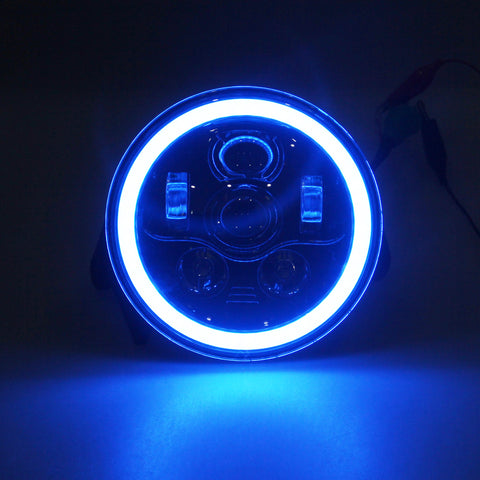

●Cool color change functions with the remote control and flashing settings: this black LED headlight with full halo ring has 7 solid main colors; it has fade in and out lighting options; it has strobing modes that the halo flashing. without a doubt, this color shift halomaker headlight will get you noticed on the road and increase awarness around you. Definitely will make your bike unique.

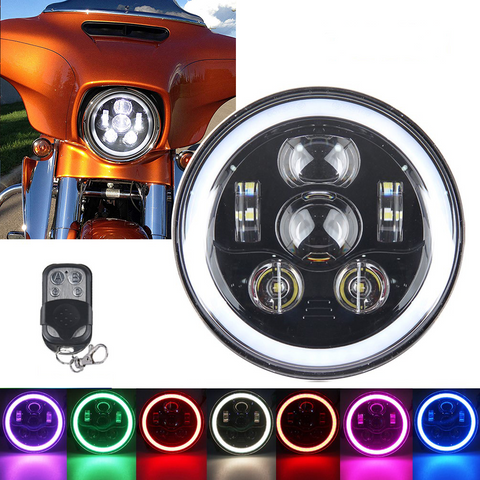

●To have all these color change features and settings, halo strobe or fading functions, you just need the wireless handheld keychain remote, it's very simple to use with the 4 button remote. Please be noted that this daymaker halo headlight can not be controlled via smartphone APP.

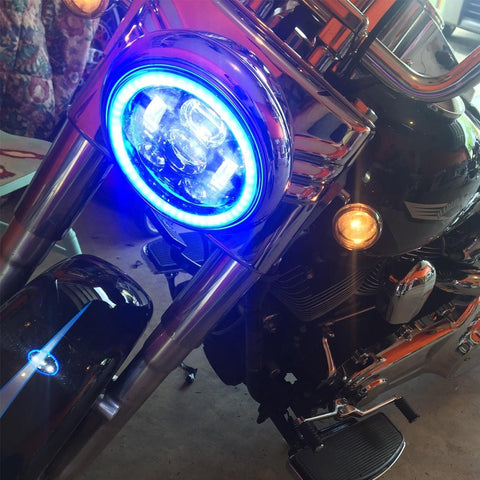

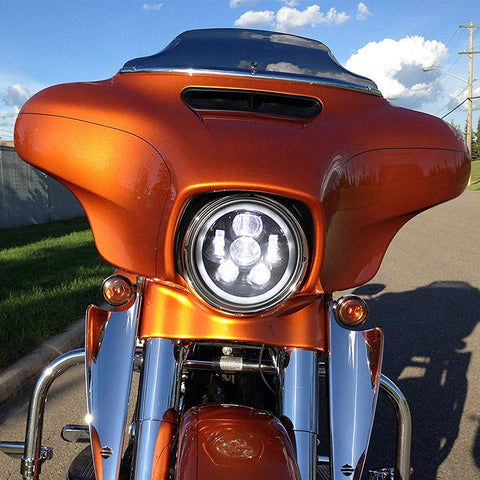

●This 7 inch LED headlight for Harley Davidson works widely on most of motorcycle models and years with a 7" round factory headlamp: Harley Davidson Touring Street Glide / Road King / Electra Glide etc (1994-2013 Touring bikes need an extra ring (Chrome or Black) to hold the headlight in place; 2014+ Touring motorcycles need an adapter harness (Single Bulb type or Dual Bulb type)), Softail Heritage & Deluxe (NO bracket or harness required for Softail), and Indian Motorcycles 15-19 Chief, Chieftain, Springfield & Roadmaster, etc. Aftermarket replacement headlight for the above motorcycles.
4 Button Remote Instruction:
A: Short Press 1-15 Times, 15 Kind Of Static Color, 16-17th Times, 15 Color Jumping & Million Color fading;
Long Press to make the Static Color Dimming. Under the Jumping & Fading status, Long Press B & C Button to Adjust the Speed;
B: Short Press to Make the Select Color Flashing;
C: Short Press to Make the Select Color Fading In and Out;
D: On/Off Switch Button; Long Press To Reset the System.
Harley Davidson Motorcycles: (NOTE: Wire Harness is required for '14-'19 Touring Models and Mounting Bracket is needed for '94-'13 Touring Models (Street Glide, Electra Glide, Road King & Switchback FLD). Not required for Softail models.)
'14-'19 Electra Glide FLHT
'14-'19 Ultra Limited FLHTK
'14-'19 Road King FLHR**
'14-'19 Street Glide FLHX
'14-'17 Softail FLS / FLST
'14-'19 Fatboy/Fatboy Lo FLSTF
'94-'13 Electra Glide FLHT
'94-'13 Road King FLHR
'94-'13 Heritage Softail FLSTC
'94-'13 Fatboy FLSTF
'06-'13 Street Glide FLHX
'12-'17 Dyna Switchback FLD
