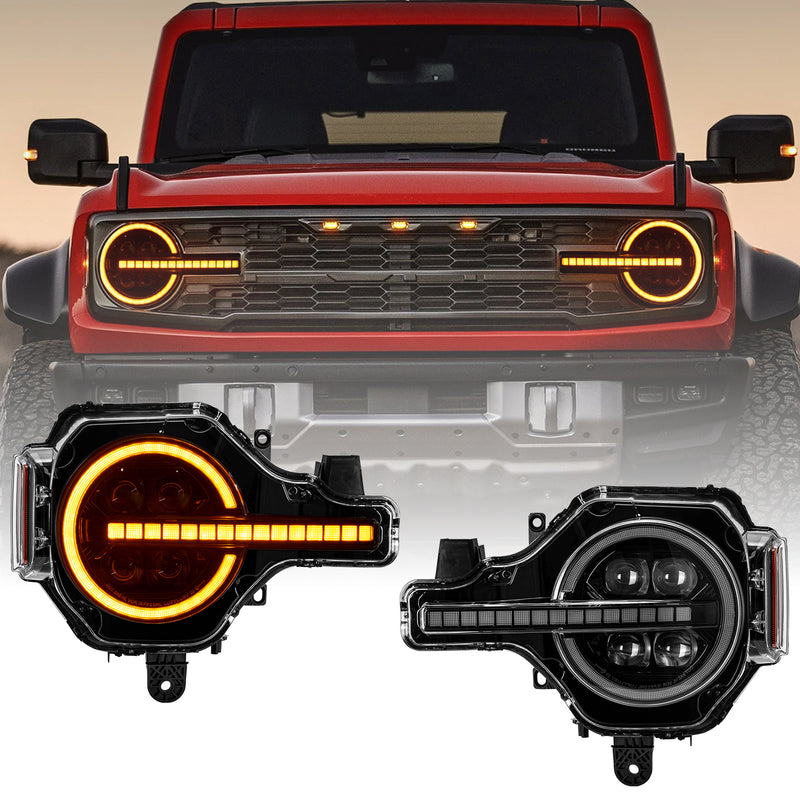

Upgraded App-Controlled Quad-Projector LED Headlights with Sequential DRL & Turn Signals for 2021–Present Ford Bronco (Pair)

SPECIFICATIONS

Vehicle Application: 2021–Present Ford Bronco
Quantity: 2 headlight assemblies

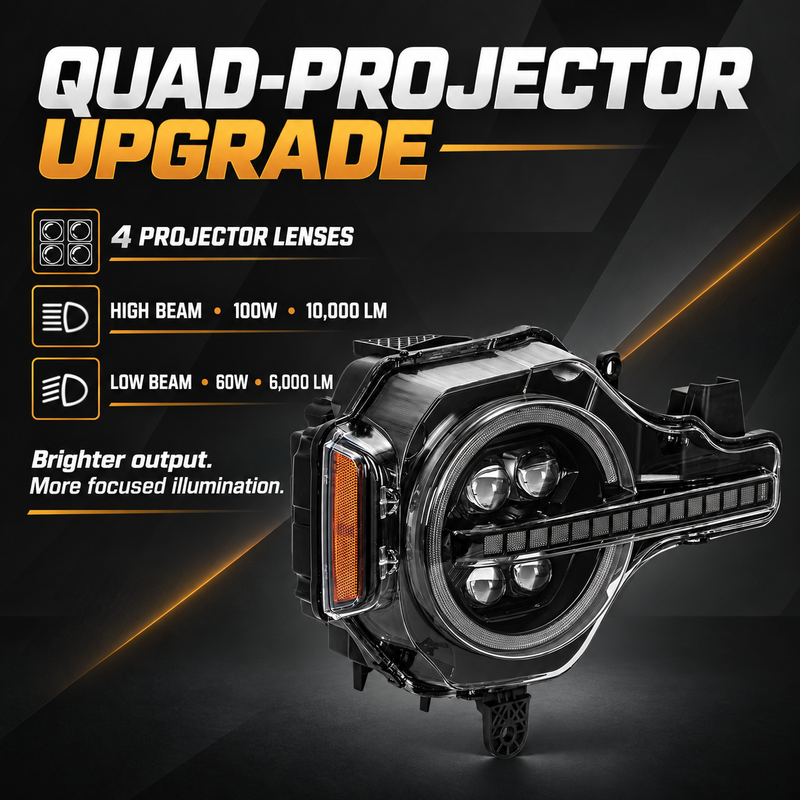

Optical Design: Four projector lenses per headlight
Light Source: LED
Low Beam Power: 60W
High Beam Power: 100W
Low Beam Output: 6,000 lumens
High Beam Output: 10,000 lumens
White DRL Current: 1.2A
Amber DRL Current: 1.2A
Waterproof: IP68
Working Temperature: -20 - 40 Degrees
Voltage: 12V
Lifespan: 50,000 hours
DRL Colors: White and amber
DRL Modes: Standard and sequential
Turn Signal Color: Amber
Turn Signal Modes: Standard and sequential
Additional Effects: Multiple app-selectable dynamic lighting patterns
Lighting Control: HappyLighting app
Lens Material: PC
Housing Material: ABS
Housing Color: Black
DOT Certificate Number: 108-CHC-2407-001

VEHICLE FITMENT

Compatible with:

• 2021–Present Ford Bronco 2-Door
• 2021–Present Ford Bronco 4-Door

Not compatible with:

• Ford Bronco Sport

PRODUCT DESCRIPTION

• Upgrade your Ford Bronco with a new generation of LED headlight assemblies featuring quad-projector optics, higher light output, improved beam control and app-controlled lighting effects.

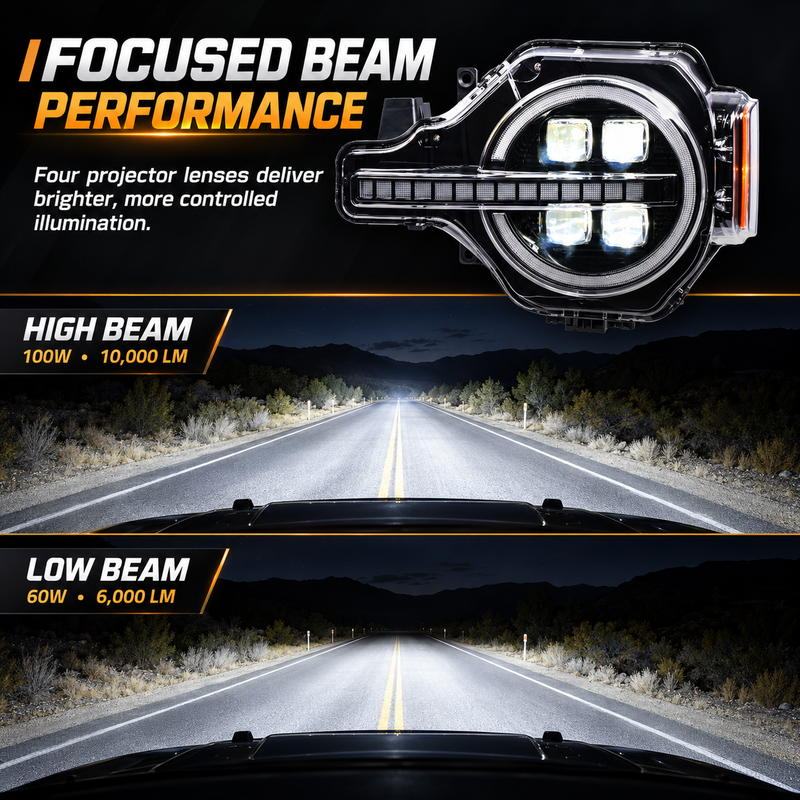

• Unlike the previous reflector-bowl design, each upgraded headlight uses four projector lenses to create a brighter, more focused beam pattern with improved road coverage. The upgraded internal and rear housing design also provides more effective heat dissipation for dependable lighting performance.

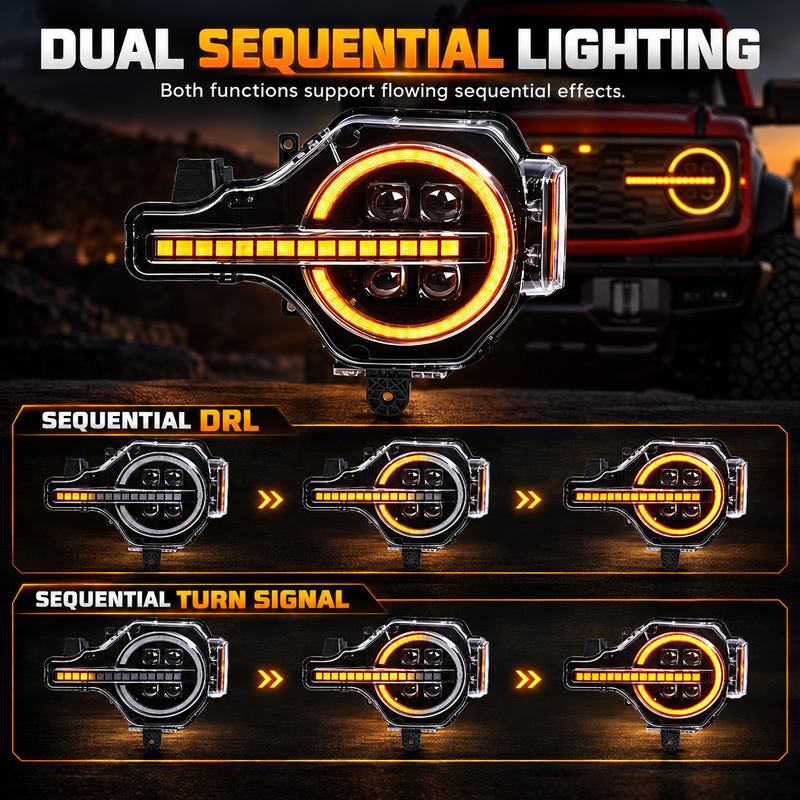

• Both the daytime running lights and turn signals support sequential lighting effects. Using the HappyLighting app, you can switch the DRL and turn signals between supported standard and sequential modes without modifying, disconnecting or reconnecting the wiring. The app also provides multiple additional dynamic lighting patterns for a more personalized front-end appearance.

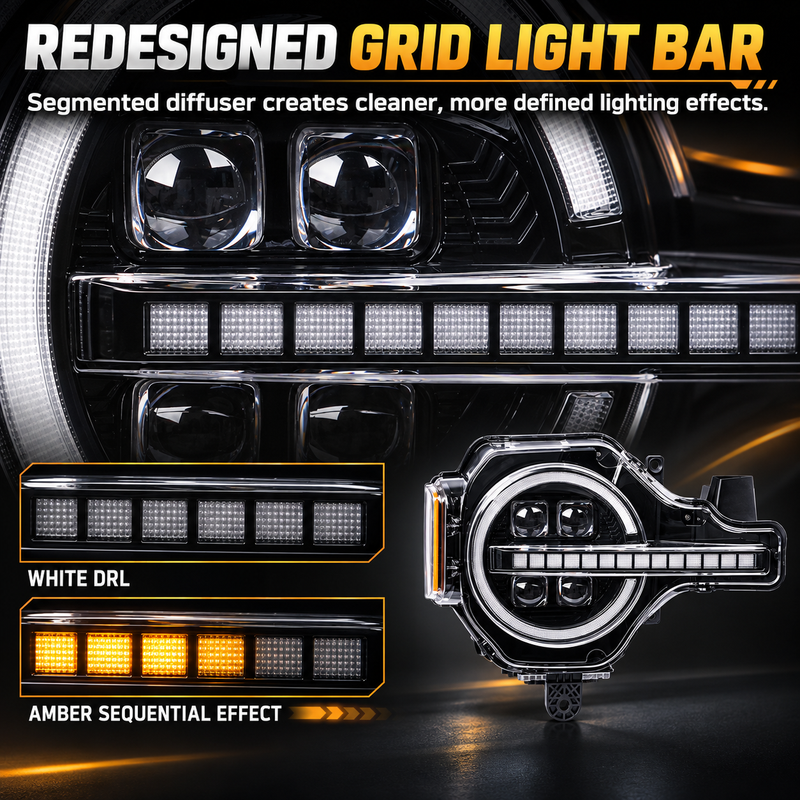

• The center horizontal light bar has also been redesigned. The previous fine mesh-style diffuser has been replaced with a segmented grid pattern, producing a cleaner appearance and more distinctive visual effects when the sequential and dynamic lighting modes are activated.

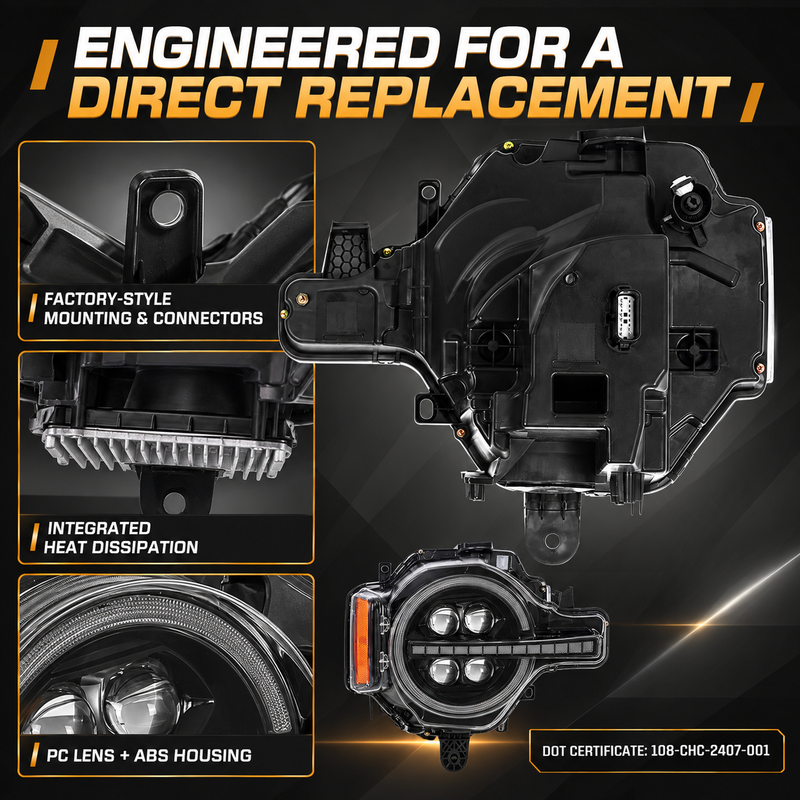

• Improved Heat Dissipation: The upgraded housing design helps manage the additional heat generated by the higher-output LEDs.
• Complete Headlight Replacement: Replaces both the driver-side and passenger-side factory headlight assemblies.
• DOT Certified: DOT Certificate No. 108-CHC-2407-001.

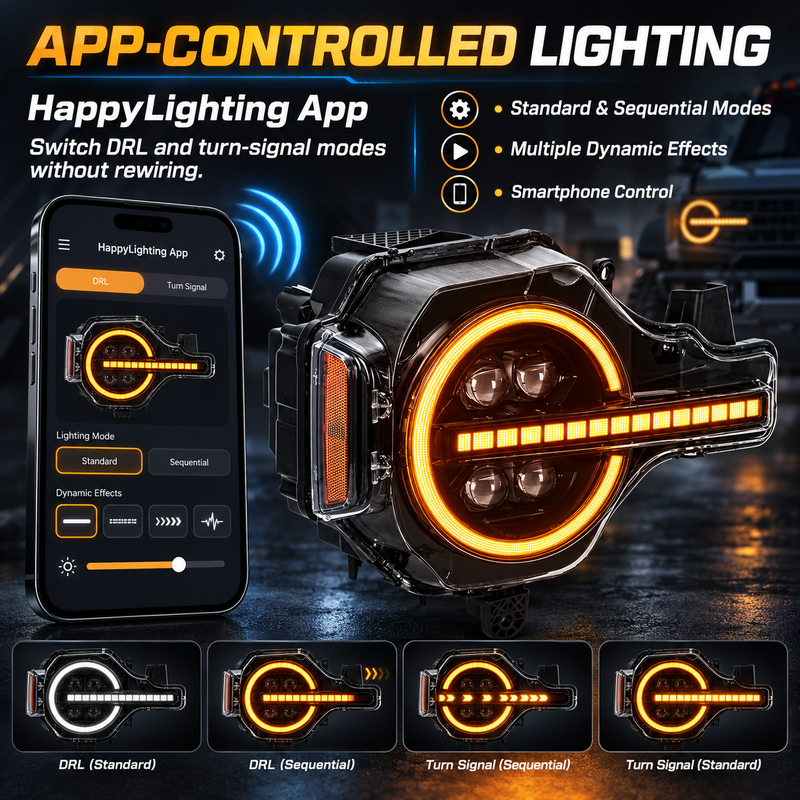

APP CONTROL

Use the HappyLighting app to select supported DRL, turn-signal and additional dynamic lighting modes directly from your smartphone.

Both the DRL and turn signals can be switched between supported standard and sequential display modes through the app. There is no need to modify, disconnect or reconnect the wiring when changing between these modes.

Follow the included pairing instructions to connect the headlights to the HappyLighting app after installation.

IMPORTANT LIGHTING NOTICE

Some animated or decorative lighting effects may be intended for shows, private property or off-road use only. Always select a lighting mode that complies with applicable state and local vehicle-lighting regulations when driving on public roads.

INSTALLATION NOTE

These headlights are designed as complete replacements for the factory headlight assemblies and use the original mounting locations.

Remove the factory headlights, install the upgraded assemblies and connect the supplied wiring and control components according to the included instructions. Pair the headlights with the HappyLighting app to configure the supported DRL, turn-signal and dynamic lighting modes.

After installation, test the following functions before reinstalling all surrounding trim:

Low beam
High beam
White DRL
Amber DRL
Sequential DRL
Sequential turn signal
App-controlled dynamic lighting modes

Check and adjust the headlight aim before nighttime driving. Professional installation is recommended if you are unfamiliar with automotive lighting wiring or exterior trim removal.
