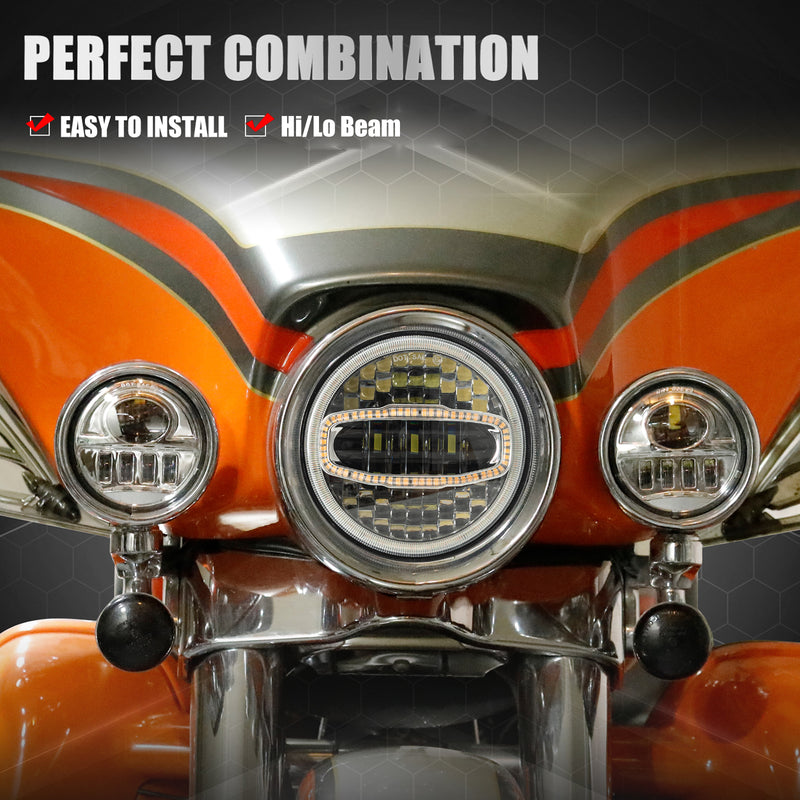

7-Inch 5D Lens LED Headlight Kit with DRL, Mounting Bracket & Wiring Adapters for Harley, Indian & Yamaha

SPECIFICATIONS：

Headlight Size: 7 inches
High Beam: 108W / 6,500 lumens
Low Beam: 36W / 3,000 lumens
DRL: 6W / 90 LEDs
High-Beam LED Configuration: 3 × 12W LEDs + 24 × 3W LEDs
Low-Beam LED Configuration: 3 × 12W LEDs
Optics: 3D crystalline lens cups
EMC: Built-in
Ventilation: Rebreather vent
Certification: DOT/SAE and E-Mark

PRODUCT DESCRIPTION：

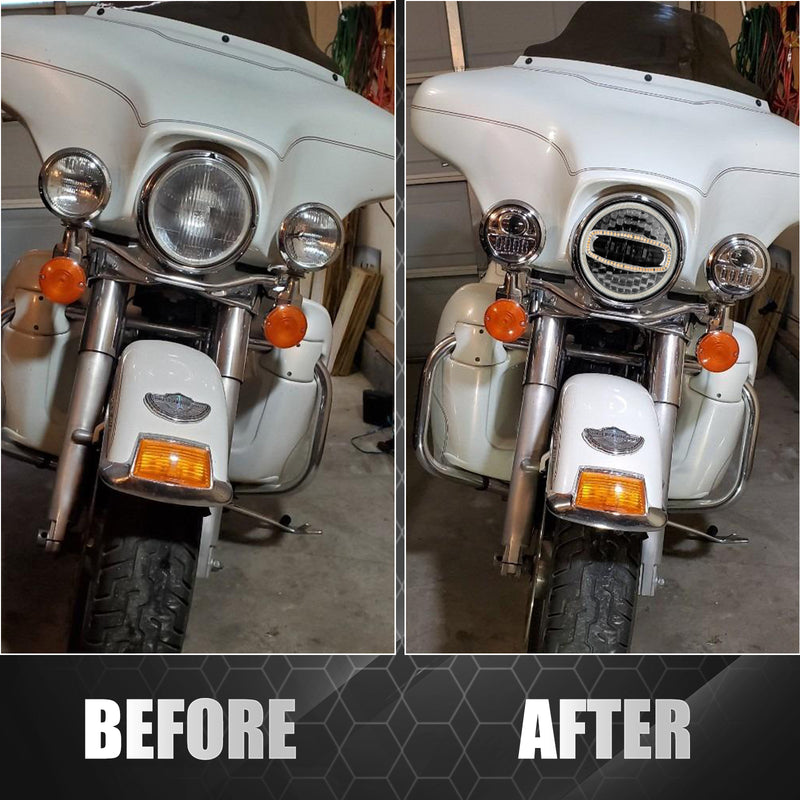

Upgrade your motorcycle with this complete 7-inch LED headlight installation kit. It includes the LED headlight, a functional headlight mounting bracket, two commonly required wiring adapters, and a separate DRL connection wire—so customers with compatible motorcycle configurations do not need to purchase these adapters separately.

The distinctive 5D crystalline lens cups improve light refraction and distribution, producing a brighter, more focused beam pattern. The headlight delivers up to 6,500 lumens on high beam and 3,000 lumens on low beam, while the integrated 90-LED daytime running light improves daytime visibility and adds a clean illuminated accent around the lens.

Designed for select Harley-Davidson, Indian, and Yamaha motorcycles that use a 7-inch headlight and require this style of mounting bracket.

KEY FEATURES：

• 5D Crystalline Lens Optics: Multi-faceted crystalline lens cups improve light refraction for a brighter, more focused beam pattern.

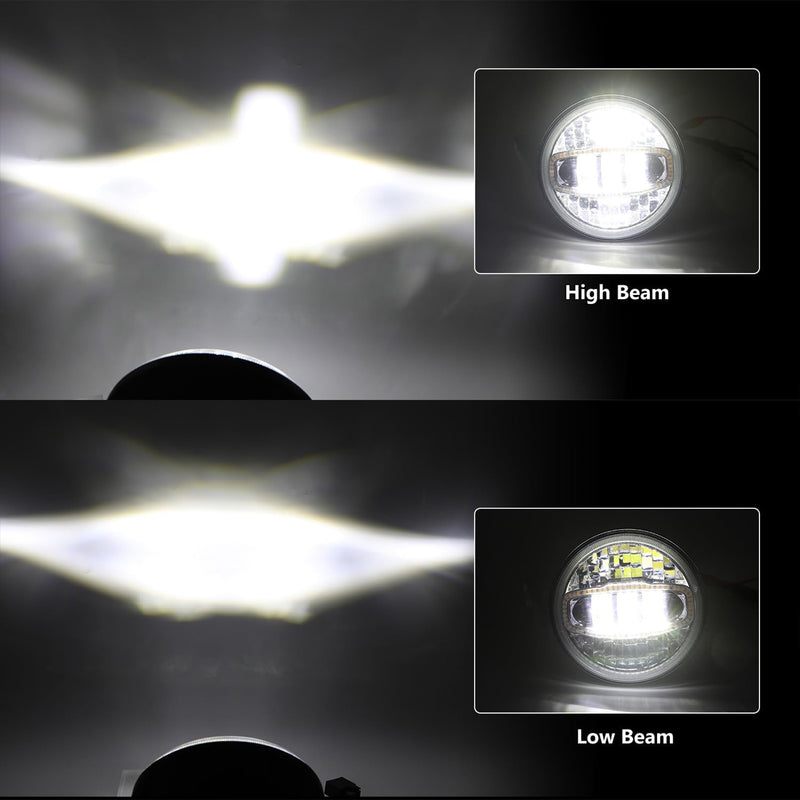

• High-Output Lighting: Produces up to 6,500 lumens on high beam and 3,000 lumens on low beam.

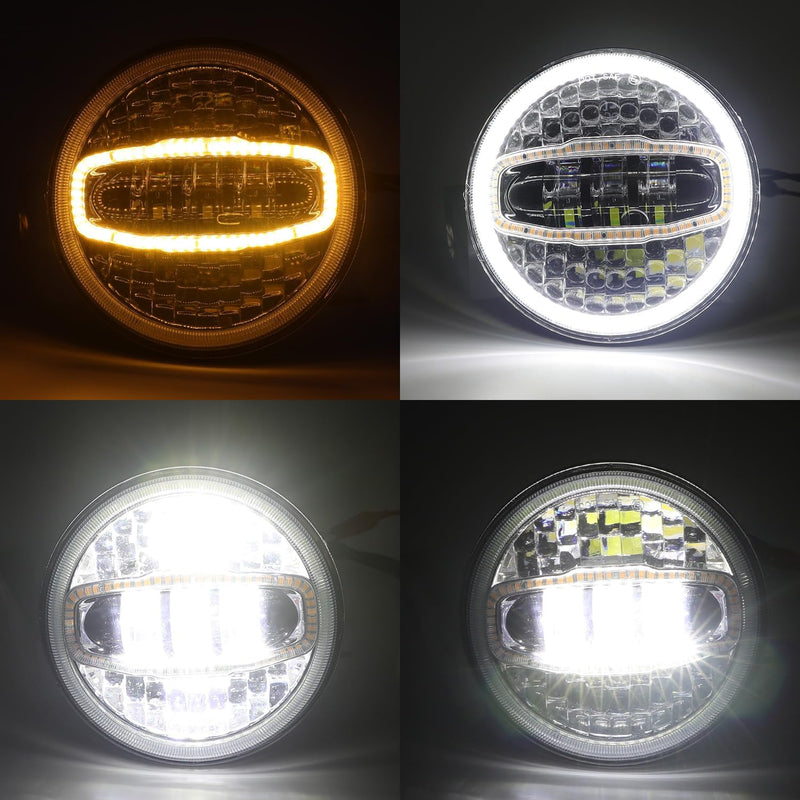

• Integrated DRL: The 90-LED, 6W daytime running light improves daytime visibility and adds a distinctive lighting accent.

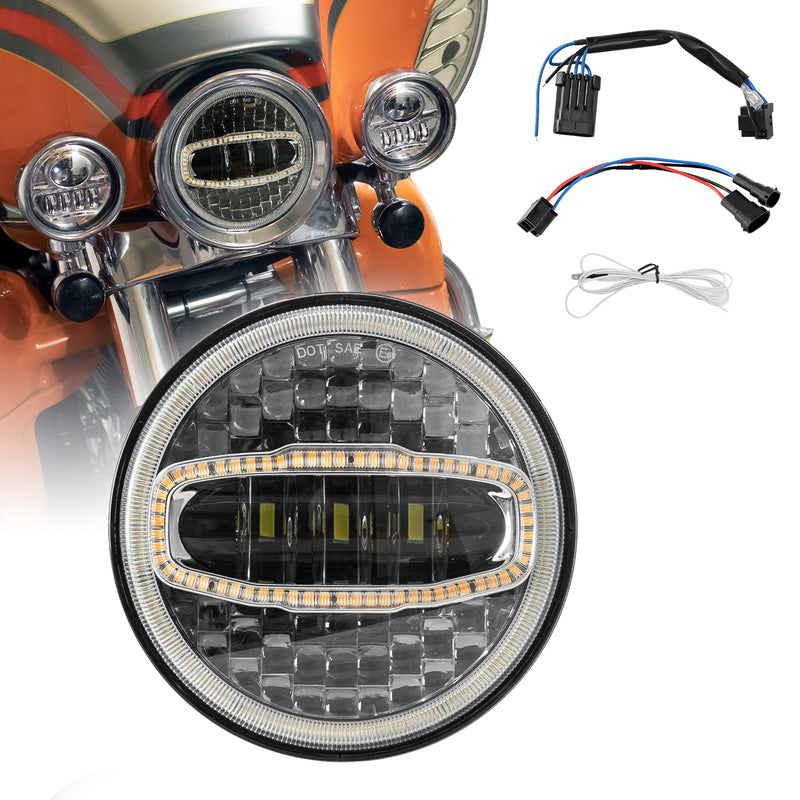

• Complete Installation Kit: Includes one 7-inch LED headlight, a functional mounting bracket, two wiring adapters, and a DRL connection wire.
• Dual Wiring Adapters Included: Supports multiple common motorcycle headlight connector configurations without requiring compatible customers to purchase the adapters separately.
• Wider Motorcycle Compatibility: The included adapters make the kit suitable for a broader range of Harley-Davidson, Indian, and Yamaha models.
• Built-In EMC & Anti-Flicker Protection: Integrated EMC circuitry helps prevent headlight flickering and minimize radio or audio interference—without requiring an additional anti-flicker module.

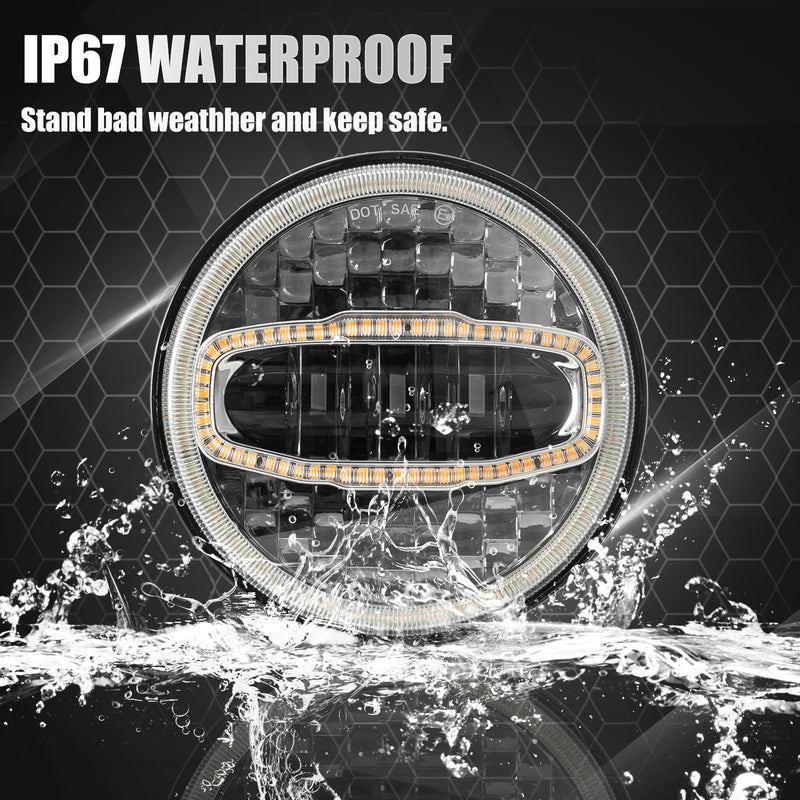

• Rebreather Vent: Helps balance internal air pressure and reduce moisture buildup and fogging inside the lens.
• Certified Design: DOT/SAE and E-Mark certified.

INSTALLATION NOTE：

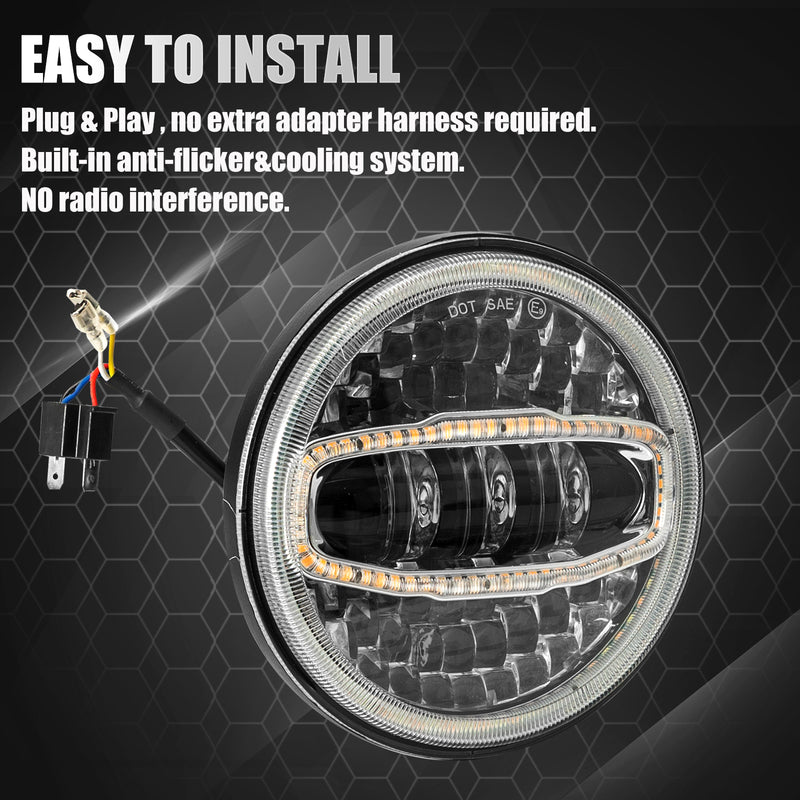

Select the included wiring adapter that matches your motorcycle’s original headlight connector. The high and low beams connect through the main headlight plug.

To activate the DRL, connect the separate DRL wire to either:

• The positive running-light wire at the front turn signal, so the DRL operates with the motorcycle’s running lights; or
• A switched 12V ACC power source, so the DRL turns on and off with the ignition.

Do not connect the DRL wire to the flashing turn-signal circuit. Because wire colors vary by motorcycle, use a multimeter to identify the correct running-light or ACC wire before making the connection.

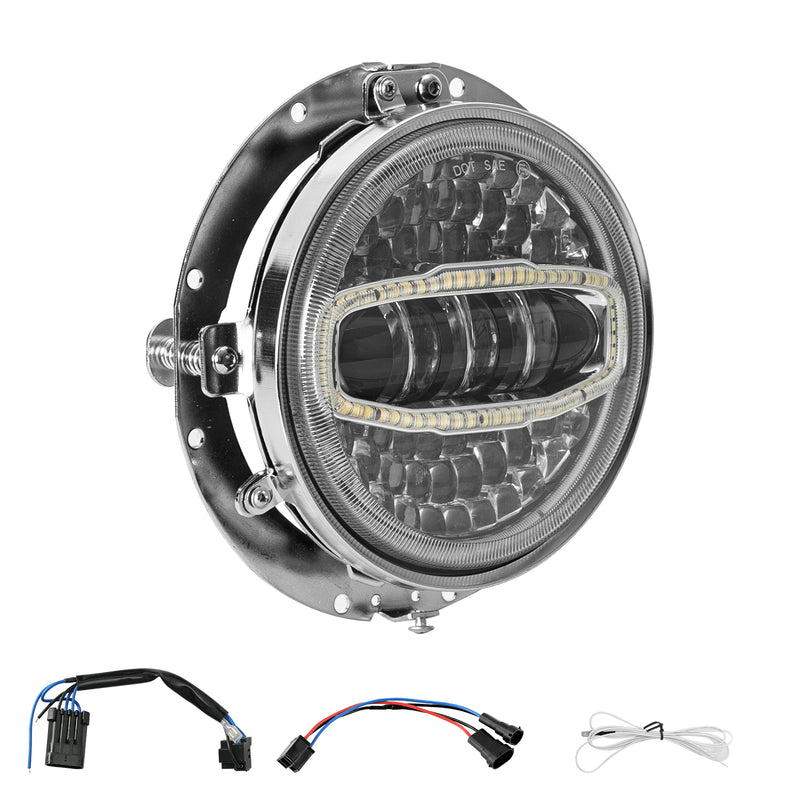

PACKAGE INCLUDES：

• 1 × 7-inch LED headlight with DRL

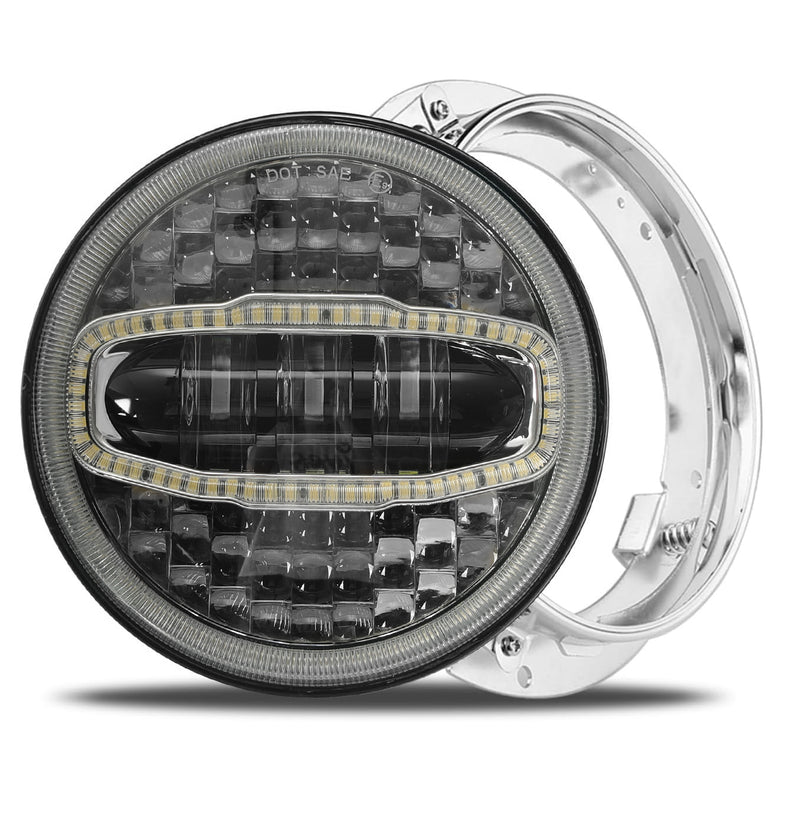

• 1 × Headlight mounting bracket
• 1 × 4-pin headlight wiring adapter
• 1 × H4-to-H9/H11 dual-beam wiring adapter
• 1 × DRL connection wire
• 1 × Installation manual
• 1 × Warranty card

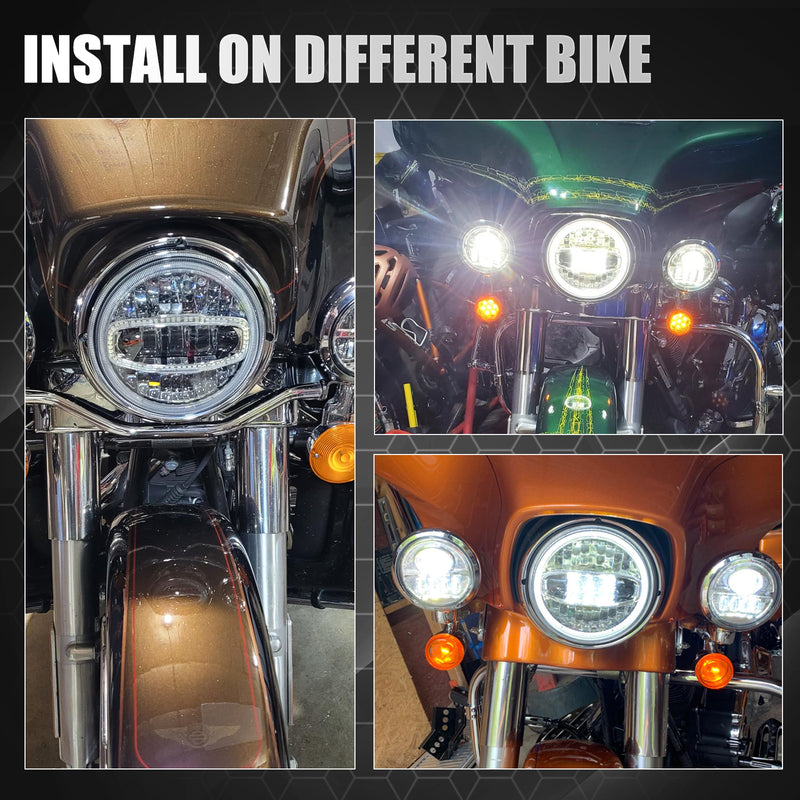

FITMENT：

Harley Motorcycle:

Softail Deluxe FLSTN 2005-Current
Softail Deluxe EFI FLSTNI 2001-2006
CVO Softail Deluxe FLSTNSE 2014-2015
Heritage Softail Classic FLSTC 1988-Current
Heritage Softail Classic EFI FLSTCI 2001-2006
Heritage Softail Special FLSTN 1994-1996
Heritage Classic 2018-Current
Road King FLHR 1995-Current
Road King Special 2017-Current
Road King Classic FLHRCI 1998-Current
Road King Classic EFI FLHRCI 1998-2006
Road King Custom FLHRSI 2004-2007
Road King EFI FLHRI 1996-2006
CVO Road King FLHRSEI 2002
CVO Road King 2 FLHRSEI2 2003
CVO Road King FLHRSE6 2014
CVO Electra Glide FLHTCSE 2004-2005
Electra Glide Ultra Classic FLHTCU 1989-1997 2007-2019
Electra Glide Ultra Classic EFI 1995-2006
Electra Glide Ultra Classic Low FLHTCUL 2015-2016
Electra Glide Ultra Limited FLHTK 2010-Current
Electra Glide Ultra Limited Low FLHTKL 2015-2019
CVO Ultra Classic Electra Glide FLHTCUSE 2006-2013
CVO Limited FLHTKSE 2014-Current
CVO Ultra Limited FLHTKSE 2014-Current
Tri Glide Ultra Classic 2009-2013
Fat Boy FLSTF 1990-Current
Fat Boy Lo FLSTFB 2010-2016
Fat Boy S FLSTFBS 2016-2017
Fat Boy EFI FLSTFI 2001-2006
Custom Vehicle Operations Fat Boy FLSTFSE2 2005-2006
Softail Slim 2012-Current
Softail Slim S FLSS 2016-2017
Street Glide FLHX 2006-Current
Street Glide Special FLHXS 2014-Current
Street Glide EFI FLHXI 2006
Street Glide Trike FLHXXX 2010-2011
CVO Street Glide FLHXSE 2010-2012 2015-Current
Freewheeler FLRT 2015-Current
Switchback FLD 2012-2016

Indian Motorcycles

15-Current Roadmaster
14-Current Chieftain
18-Current Chieftain Classic
18-Current Chieftain Limited
17-Current Chieftain Dark Horse
14-18 Chief Classic
15-Current Chief Dark Horse
14-Current Chief Vintage
16-Current Springfield
18-Current Springfield Dark Horse

Yamaha Motorcycles

96-10 V-Star 650 Classic XVS650A
03-10 V-Star 650 Silverado XVS650AT
00-09 V-Star 1100 Classic XVS1100A
03-09 V-Star 1100 Silverado XVS1100AT
01-03 Road Star Midnight Star XV1600AS
04-07 Road Star Midnight Star XV1700AM
99-03 Road Star Silverado XV1600AT
04-10 Road Star Silverado XV1700AT
08-13 Road Star Silverado S XV1700ATS
04-07 Road Star Silverado Midnight XV1700ATM
99-03 Road Star XV1600A
04-09 Road Star XV1700A
08-13 Road Star S VX1700AS
